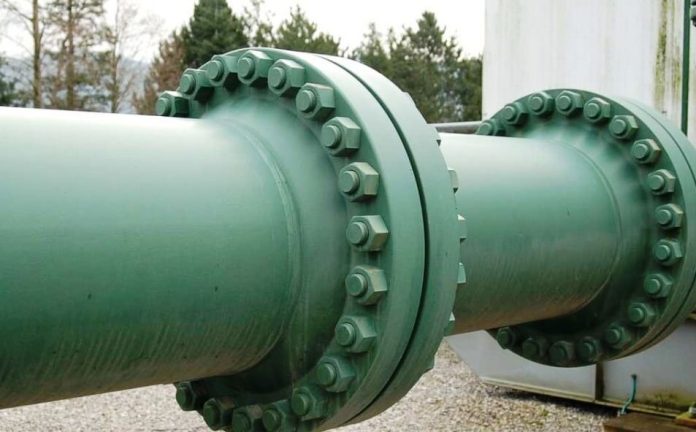

As mining operations increasingly rely on pipelines to transport mixtures of water, solids, and inert materials like clay, silt, sand, and gravel, flanges have become indispensable for managing pressurized flow.
Pipeline Flanges allow for secure connections between pipe sections and provide convenient access points for cleaning, inspections, or modifications.
Available in various materials and dimensions, they ensure durability and adaptability, making them an ideal solution for the rigorous demands of mining applications.
Type of pipeline flanges
Flanges are vital in piping systems, enabling secure connections between pipes, valves, and equipment. Different flange types are designed to address specific needs, such as managing pressure, ensuring alignment, or accommodating changes in pipe size. These include.
Slip-On Flanges
These flanges slide over the pipe end and are welded for a secure fit. Suitable for high-temperature, low-pressure systems, they are available in flat or raised face styles and meet ANSI and AWWA standards.
Ring-Type Joint Flanges
Similar to slip-on flanges but designed for high-pressure applications, they use gaskets for better sealing.
Lap-Joint FlangesÂ
Paired with stub ends, these flanges don’t require welding and allow easy alignment of bolt holes, making them ideal for systems requiring frequent maintenance.
Threaded Flanges
These flanges screw onto threaded pipes, requiring no welding. They are best for small-diameter, high-pressure systems but not recommended for thin-walled pipes.
Blind Flanges
Used to close piping systems, these flanges have no bore and create leak-proof seals when paired with gaskets.
Weld-Neck Flanges
Featuring a tapered hub, these are welded to pipes and suited for high-pressure and extreme temperature applications, distributing system stress effectively.
Socket Weld Flanges
These flanges are for small, high-pressure pipes. The pipe is inserted, slightly retracted, and welded for strength and leak-proof flow.
Reducing Flanges
Used to connect pipes of different sizes, they come in weld-neck, slip-on, or threaded styles, ensuring a proper fit between larger and smaller pipes.
Factors to consider when selectin pipeline flanges
Pressure Capacity
Choose pipeline flanges like weld-neck or ring-type joint for high-pressure systems transporting slurries or compressed air to prevent leaks and ensure safety.
Pipe Size
Ensure flange dimensions match pipeline sizes for seamless flow. Use reducing flanges for connecting pipes of different sizes, common in mining distribution systems.
Intended Application
Corrosion Resistance: Use stainless steel or coated pipeline flanges for acidic or chemical-laden pipelines.
Maintenance: Opt for lap-joint flanges for pipelines requiring frequent disassembly.
Durability: Select weld-neck flanges for systems exposed to high temperatures or vibrations.
